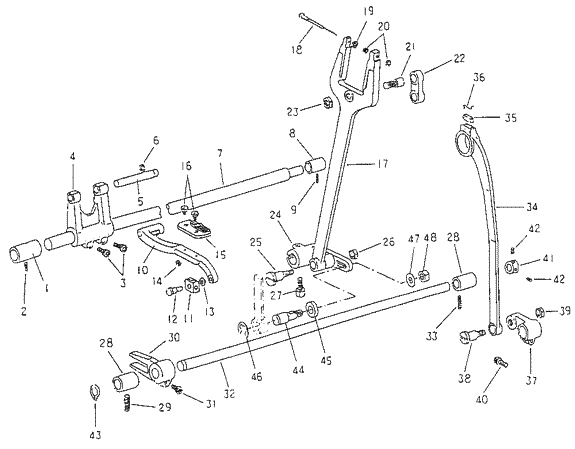

1 Feed Shaft Bushing front 18523
2 Set Screw 8009
3 Set Screw 18065
4 Feed Rock Shaft Base 18694
5 Feed Base Supporting Pin 18696
6 Stop Ring 31094
7 Feed Rock Shaft 18061
8 Feed Shaft Bushing (Rear) 18702
10 Feed Base 19526
11 Bell Crank 19535
12 Pin Consew 19529
13 Washer 19530
14 Screw 50230
15 Feed Dog 18031
16 Set Screw 19525-SEK
17 Feed Forked Connection 18010
18 Screw 18011
19 Nut 4137
20 Nut (Small) 4211
21 Pin Screw 18014
22 Feed Connecting Link 17207
23 Nut 8105
24 Feed Rock Shaft Crank (back) 19527
25 Hinge Screw 18015
26 Nut 8105
27 Pinch Screw 31021
28 Feed Lifting Shaft Bushing 18489
29 Set Screw 8009
30 Feed Lifting Crank (Front) 18492
31 Screw, Pinch 30066
32 Feed Lifting Connecting Rod 18488
33 Set Screw 10579
34 Crank Connecting Rod 18021
35 Oil Felt 17026
36 Oiling felt presser pin 10723
37 Feed Lifting Crank ( Rear ) 18493
38 Hinge screw 18018
39 Nut 8105
40 Pinch Screw 18065
41 Feed Lifting Collar 18491
42 Set screw 10828
43 E Ring 18490
44 Screw 18539
45 Washer 18540
46 E Ring 17095
47 Washer 10599
48 Ball Joint Connection Nut 11412
|
|
