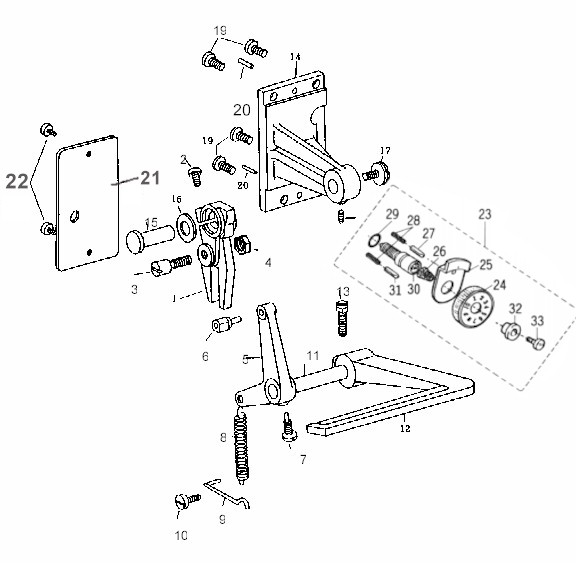

1 Feed Regulator 18505
2 Pinch Screw 17053
3 Feed Regulator Screw 17209
4 Nut for 8105
5 Reverse Lever Shaft Crank 18506
6 Reverse Block Complete 18721C
7 Screw 18507
8 Spring 18515
9 Spring Stop 18516
10 Screw 7033
11 Reverse Lever Shaft 18512
12 Reverse Lever 18511
13 Screw 10845
14 Feed Regulating Base 18502
15 Feed Regulating Support Stud 17055
16 Washer 17057
17 Supporting Stud Pushing Screw 17060
18 Screw 17056
19 Screw 12361
20 Pin 50174
21 Arm Side Cover 18503
22 Screw 37509
23 Stitch Regulator Complete 22007C
24 Feed Regulating Dial 18416
24 Feed Regulator Dial 22007
25 Stopper 22004
26 Spring 22005
27 Position Pin 22002
28 Spring 22003
29 O Ring 18420
30 Feed Regulating Screw 18504
32 Bushing 22001
33 Screw 22008
