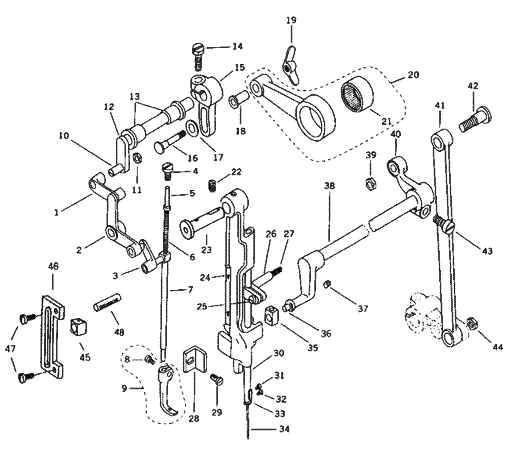

1 Lifting bell crank link 10557
2 Lifting bell crank 10558
3 Presser bar connecting link 10556
4 Screw 19517
5 Vibrating presser bar extension 10553-A
6 Presser bar extension spring 10554
7 Vibrating presser bar 34713
8 Screw 17104-SEK
9 Inside walking foot 19412C
10 Set screw 19515
11 Nut 19516
12 Lifting rock shaft 19425
13 Lifting rock shaft bushing 10514
14 Clamp screw 19420
15 Connecting crank 19419
16 Screw 10775
17 Arm Cap Screw Washer 10703
18 Connecting collar 10774
19 Wing nut 10776
20 Lifting Eccentric Connection Complete 10772C
21 Needle bearing 10773
22 Screw 100446
23 Hinged stud 11875
24 Needle bar rocker frame 15110-A
25 Set screw 13365
26 Needle bar connecting stud 19426
27 Oil wick 10726
28 Position Bracket 10560
29 Set screw 18085
30 Needle bar 19413-SEK
31 Set Screw 6035
32 Needle set screw B140553-SEK
33 Needle bar thread guide 10533
34
NEEDLE
(DPx17)
35 Slide block 11877
36 Slide block stud 11876
37 Screw 10581
38 Needle bar rock frame shaft 17048
39 Nut (upper) 6026-02
40 Rock shaft crank 19409
41 Connection rod 18017
42 Hinge screw 18018
43 Set screw 19408
44 Nut 8105
45 Vibrating Presser Bar Block 15109
46 Vibrating Presser Bar Guide 15108
47 Set Screw 8100
48 Oil Wick 10728
