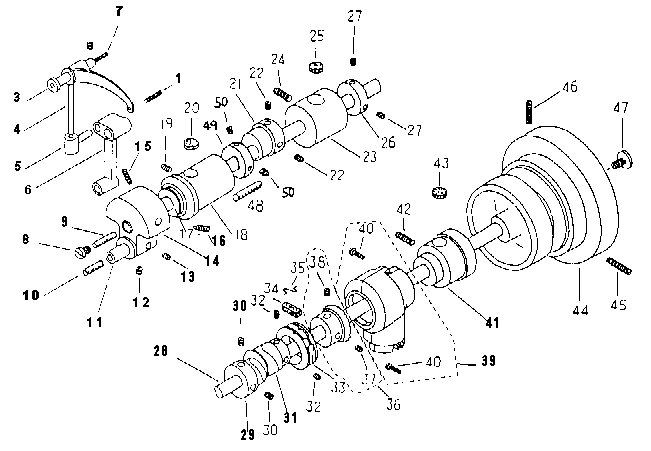

1 Set Screw 10579
2 Oil wick 10726
3 Take up lever hinged stud 10527
4 Thread take up lever 18003
5 Take up lever driving stud 15026
6 Needle bar connecting link 10528
7 Oil wick for 10728
8 Arm shaft oil packing stop screw 19504
9 Oil wick for arm shaft 10724
10 Oil Felt 17026
11 Needle bar connecting link stud 10523
12 Set screw B 19418
13 Set Screw (A) 19417
14 Needle bar crank 19414
15 Screw B 19416
16 Screw A 19415
17 Arm Shaft Bushing Washer 10563
18 Arm Shaft Bushing (Front) 18006
19 Set screw 1786
20 Oiling felt 10725
21 Lifting eccentric 19427
22 Screw 19508
23 Arm Shaft Bushing (Middle) 18008
24 Set Screw 10579
25 Oiling felt 10725
26 Arm shaft bushing collar 19506
27 Set screw 23637
28 Arm Shaft SH17132
29 Feed Lifting Cam SH19521
30 Set screw 10828
31 Feed driving eccentric 19528
32 Set screw 23637
33 Feed fork collar 17040
34 Oiling felt 17041
35 Oiling felt presser pin 10723
36 Arm Shaft Gear Complete 17017C
37 Set screw (A) 17018
38 Set screw (B) 17019
39 Gear Cover Complete 17015C
40 Set screw 17016
41 Arm Shaft Bushing (Rear) 17013
42 Set Screw 10579
43 Oiling felt 13081
44 Balance wheel 18470
45 Set screw 10576
46 Set Screw 10579
47 Balance wheel adjusting screw 19505
48 Oil wick 10729
49 Lifting eccentric collar 11879
50 Screw 10573
